Baileigh BG-260-3 Belt Grinder Three Wheel Variable Speed 400v

Baileigh BG-260-3 Belt Grinder Three Wheel Variable Speed 400v

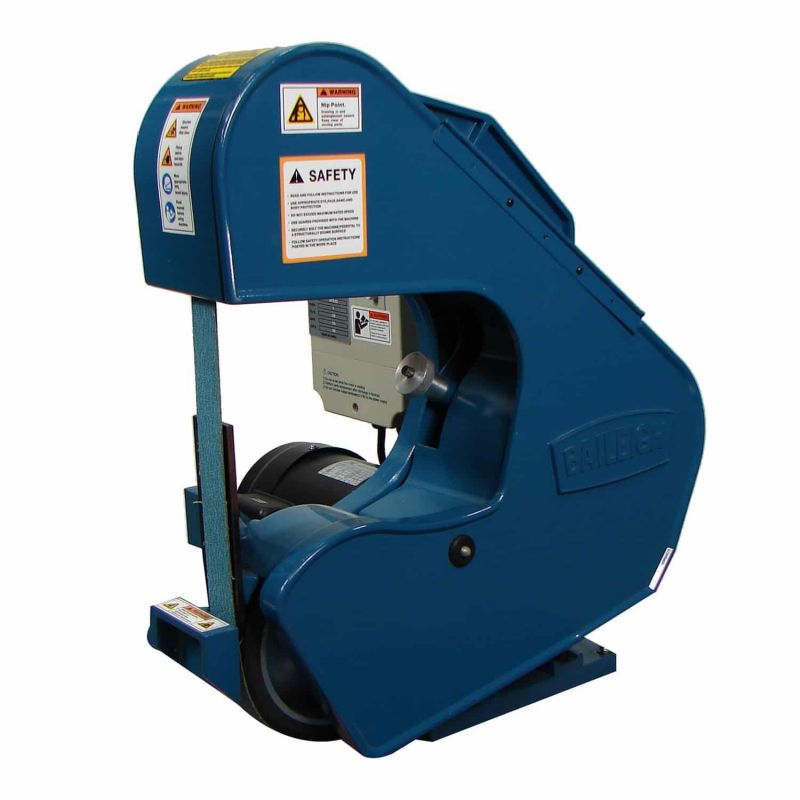

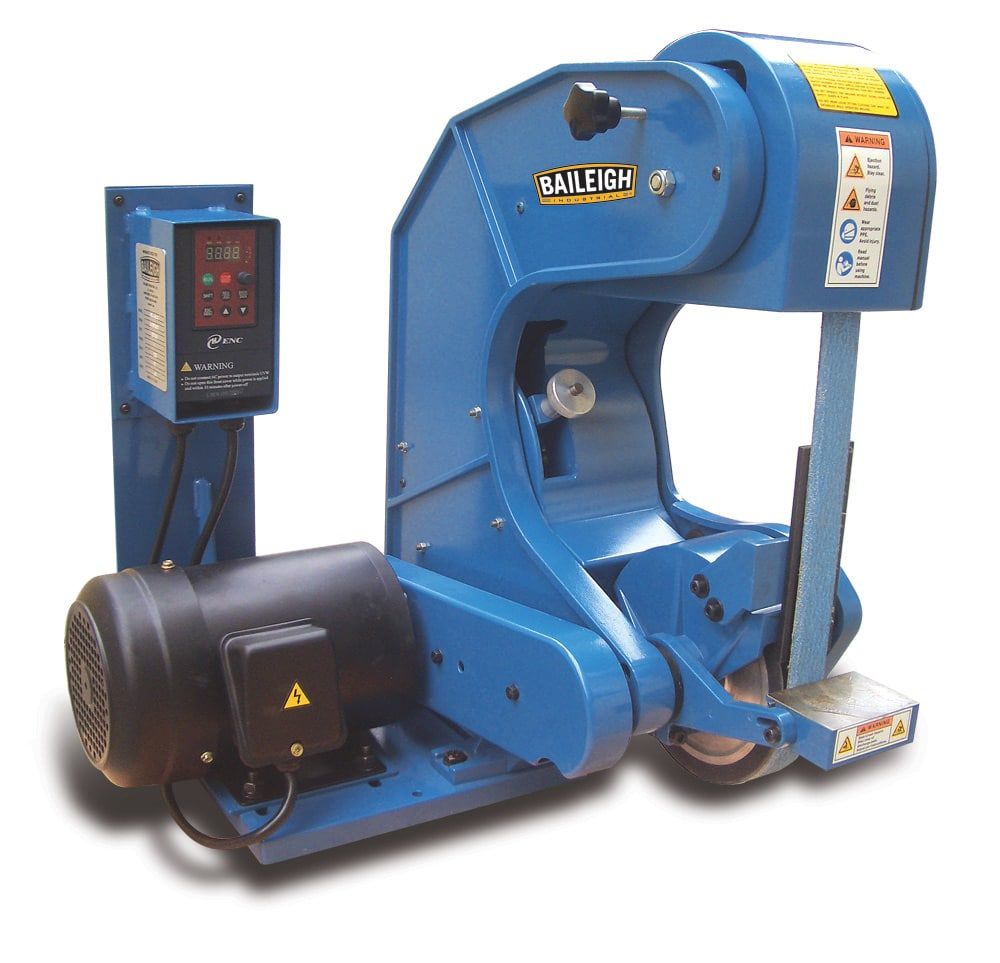

The Baileigh Industrial line of grinders just got bigger with the addition of the BG-260 belt grinder.

• This three wheel grinder offers all of the versatility a fabrication shop could want.

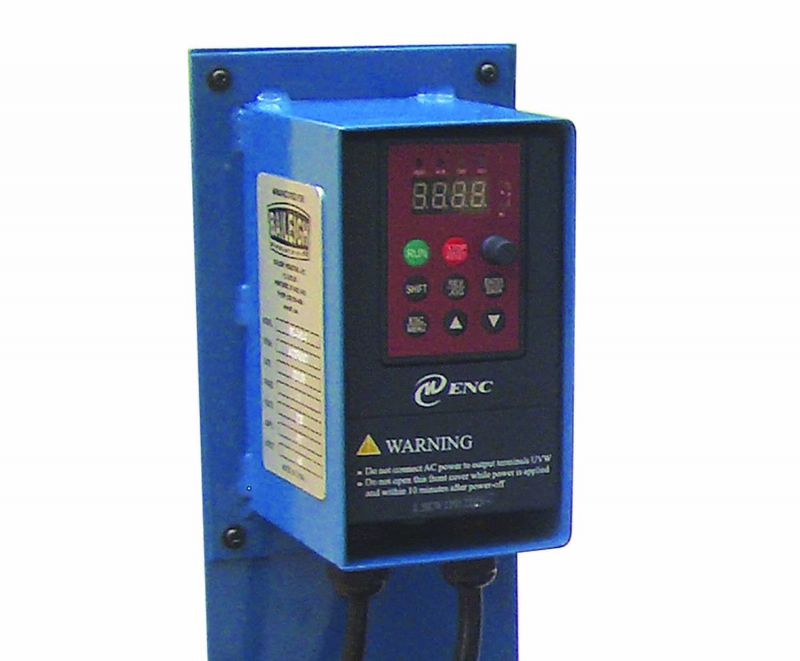

• Powered by 400 volt three phase power this inverter driven grinder offers variable speeds ranging from 800 to 8000 fpm, ensuring the correct speed for any application.
• Like all Baileigh Industrial grinders the BG-260 is built to last using only the finest quality components.
• The structure on the BG-260 is comprised mainly of solid cast aluminum to offer the maximum in rigidity and vibration reduction.
• Because of these castings, the fit and finish on the BG-260 is second to none.
• The BG-260 belt grinder utilizes fully sealed ball bearings to prevent against breakdowns.
• A unique belt tension device is also included to make belt tension changes and changing the belts a breeze.
• The BG-260 offers a deeper horizontal and vertical throat depth for those larger or uncommon shaped parts.
• Grinding tables are also included for precise grinding.
• For the safety of the operator, all rotating parts on the BG-260 grinder are fully covered.
• The BG-260 grinder is typically in stock for fast deliveries.
• Inverter driven Variable speed
• All cast aluminum design

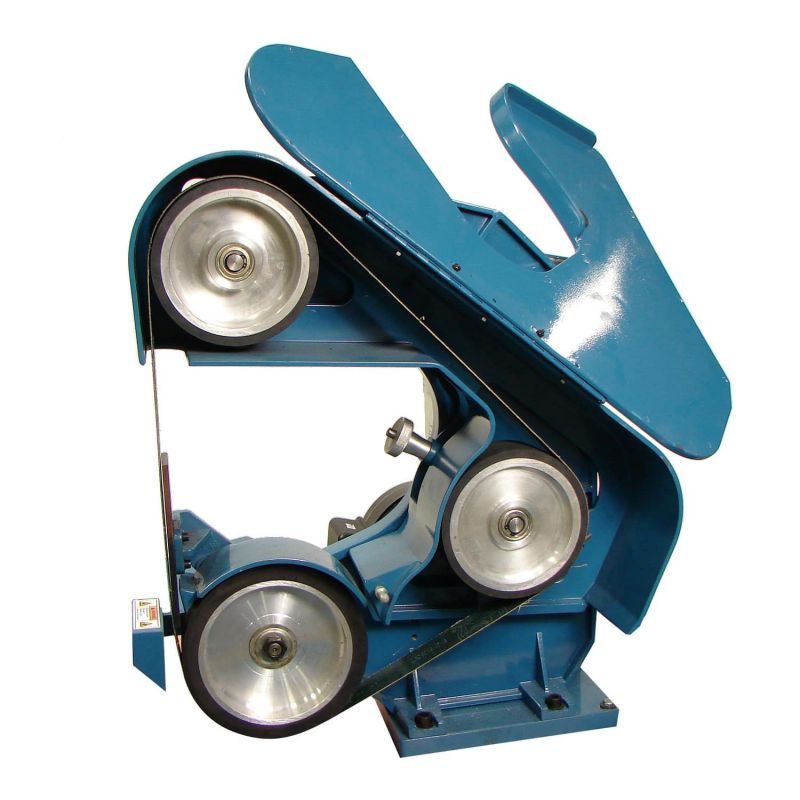

• 7 Diameter Contact Wheels
• Quick Change belt system
• 400 volt three phase
• 1524mm belt length
• 40mm belt width
• 2 Year warranty

• Item Number BG-260-3
• Motor 1.5 hp
• Belt Size L x W 60″ x 2″
• Belt Speed (ft./min.) 800 – 8000 fpm (variable)
• Shipping Weight 75 lbs.
• Shipping Dimensions (Inches) 46″ x 23″ x 23″
