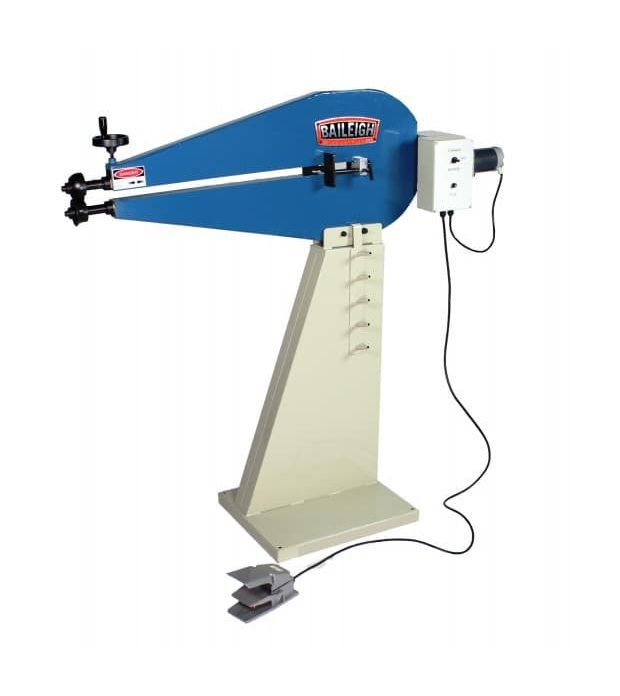

Baileigh BR-18E-36 Bead Roller 240v

Baileigh BR-18E-36 Bead Roller 240v

Have a need to roll beads on extra deep panels? The BR-18E-36 power bead roller from Baileigh Industrial is just what you need, with its 914mm throat depth getting to the middle of panels is a breeze.

• The BR-18E-36 is perfect for any car builder or restorer that needs to make hoods, deck lids or roof panels.
• Powered by a 220V, 50hz industrial grade motor and gearbox, this handy machine can form beads or steps in 1.25mm mild steel sheet metal with ease.
• The BR-18E-36 is constructed of a heavy steel framework that is fully welded for further rigidity to ensure perfect metal forming every time.
• All rotating points have bronze bushings for long life.
• Control of this bead roller is with a variable speed foot pedal that allows the operator to have both hands free to work the material.
• The BR-18E-36 will also roll in both directions to help with those projects that have tricky areas to get to.
• The bead depth is adjustable via the top roll with at lead screw and handle.
• Like other Baileigh bead rollers, this one comes standard with a heavily constructed floor stand that includes a die rack.
• This bead roll has been constructed for years of profitable production.
• There is one set of spoiler rolls that come with this machine. Any other rolls are optional and extra to the cost of the machine.
• 1.25mm mild steel capacity
• 915mm throat depth
• Stand and depth stop included

• Item Number BR-18E-36
• Motor Hp 1/8 hp
• Roll Holder Included
• Throat Depth 915 mm
• Stand Included
• Capacity (Mild Steel) 1.25 mm
• Adjustable Depth Stop Included
• Aluminum Capacity 1,6 mm
• Power 220V, 50Hz, 1 Phase
• Shipping Weight 91 kgs.
• Shipping Dimensions (Inches) 1283 x 711 x 305mm
