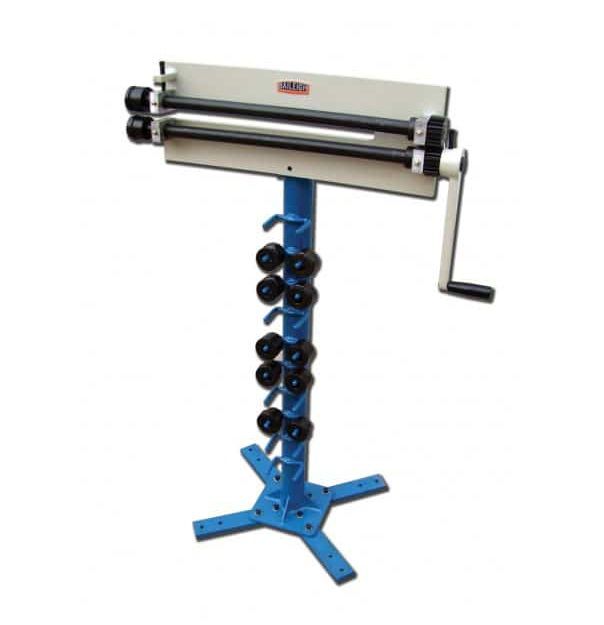

Baileigh BR-18M-18 Manual Bead Roller

Baileigh BR-18M-18 Manual Bead Roller

Just getting started in metal forming or just looking for an inexpensive alternative to having your panels beaded by somebody else? The BR-18M-18 bead roller could just be the perfect solution.

• Made from plate steel the BR-18M-18 has an 457mm throat depth making it perfect for strengthening any type of panel such as roof, deck, and hoods.
• This bead roller is manually operated by a hand crank that drives both the bottom and top bead rolls.
• A depth of bead can be altered by a simple top roll adjustment.
• Made to take years of abuse in any shop atmosphere, this bead rolling machine comes standard with a heavy duty stand.
• The BR-18M-18 also comes with a roll rack and six sets of the most common rolls required by metal forming enthusiasts; 1.6mm, 3.2mm, 6.4mm step dies and 6.4mm, 9.5mm, 12.7mm bead dies.
• For added longevity the drive shafts ride in quality bushings that can be periodically fed grease through grease fittings.
• 1.25mm mild steel capacity
• 457mm throat depth
• Manual operation
• Stand and depth stop included

• Item Number BR-18M-18
• Throat Depth 457 mm
• Stand Included
• Capacity (Mild Steel) 1.2 mm
• Shipping Weight 69 kgs.
• Shipping Dimensions 1194 x 812 x 203 mm
