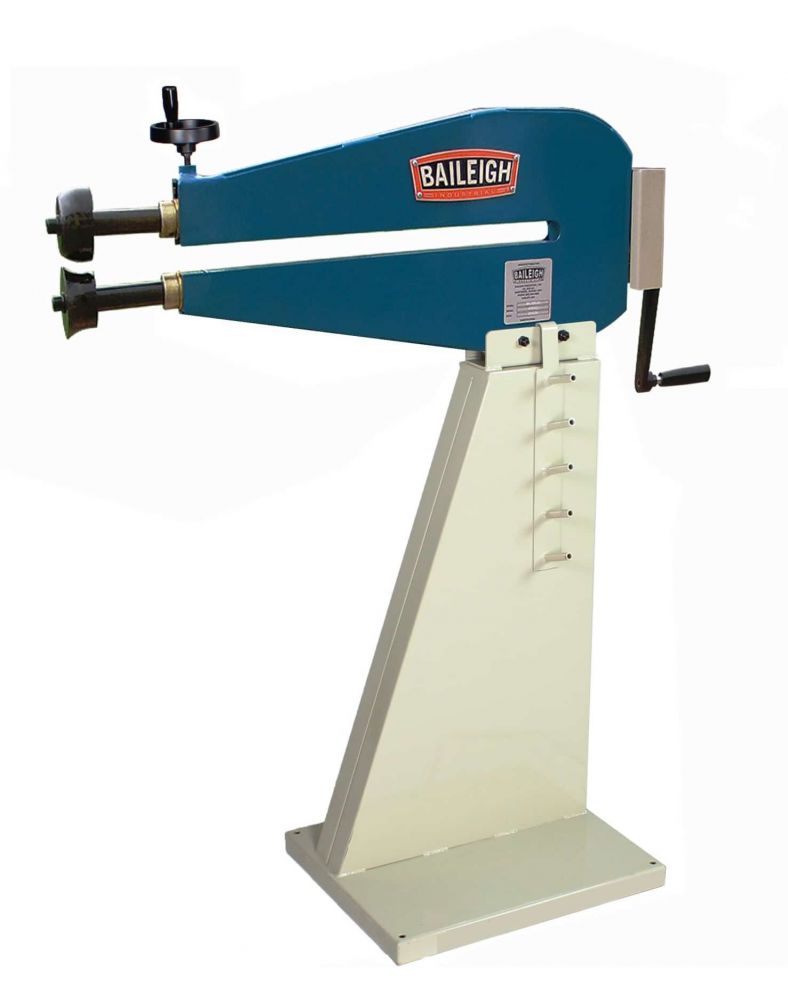

Baileigh BR-18M-24 Manual Bead Roller

Baileigh BR-18M-24 Manual Bead Roller

Baileigh Industrial's line of bead rollers now has something for everyone. The BR-18M-24 bead roller is a manually operated bead roller based off of their popular BR-18E-24.

• This bead roller is made from of a heavy steel framework that is electro welded for further rigidity.
• It has a 610mm throat depth for almost any application, but is compact enough to make even the most demanding beading patterns.
• The BR-18M-24 manual bead roller has a capacity of 1.2mm mild steel and 16 gauge aluminum.
• The bead depth is adjustable via the top roll.

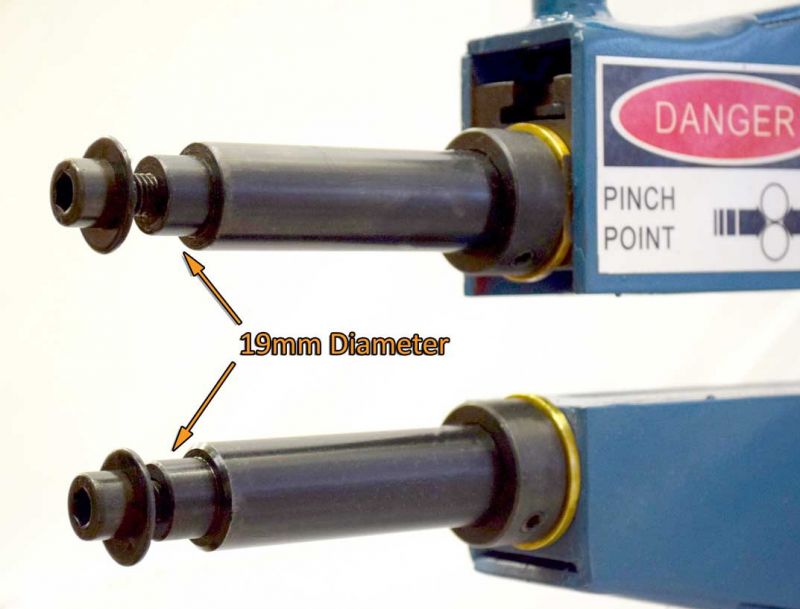

• Baileigh offers many sets of tooling for the BR-18M-24 bead roller and the shaft diameter is 19mm and will fit most commercially available roll sets.
• All moving parts on the BR-18M-24 bead roller have bronze bushings for long life.
• Like most Baileigh bead rollers, the BR-18M-24 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack.
• This bead roll is built to last.
• There is 1 SET of spoiler rolls that come with this machine. Any other rolls are optional and extra to the cost of the machine.
• 1.25mm mild steel capacity
• 610mm throat depth
• Manual operation
• Stand and depth stop included

• Item Number BR-18M-24
• Throat Depth 610 mm
• Capacity (Mild Steel) 18 ga.
• Adjustable Depth Stop Included
• Shipping Weight 50 kgs.
• Shipping Dimensions (Inches) 914 x 457 x 203 mm
