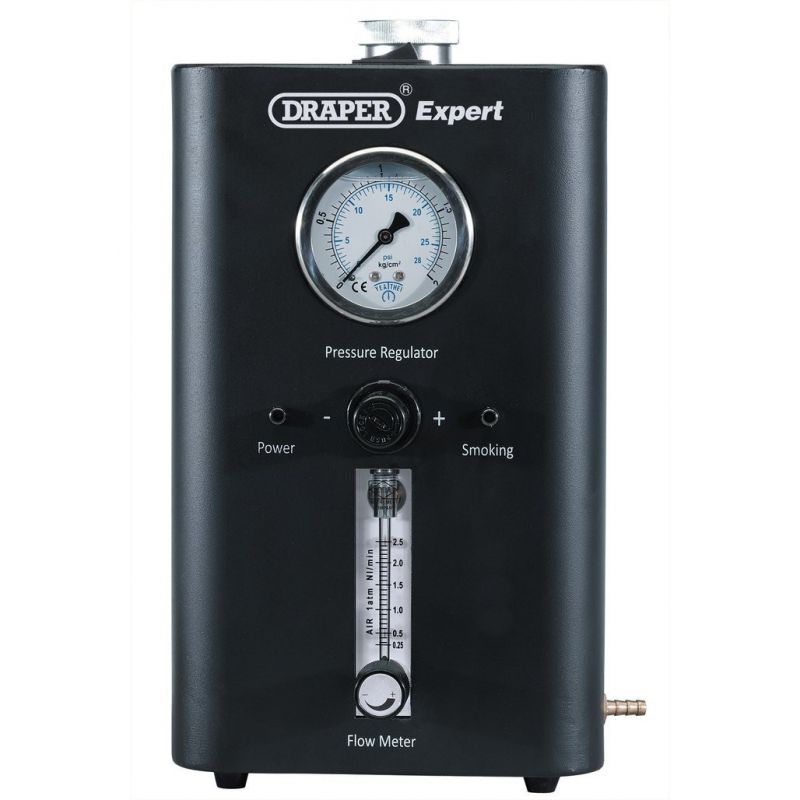

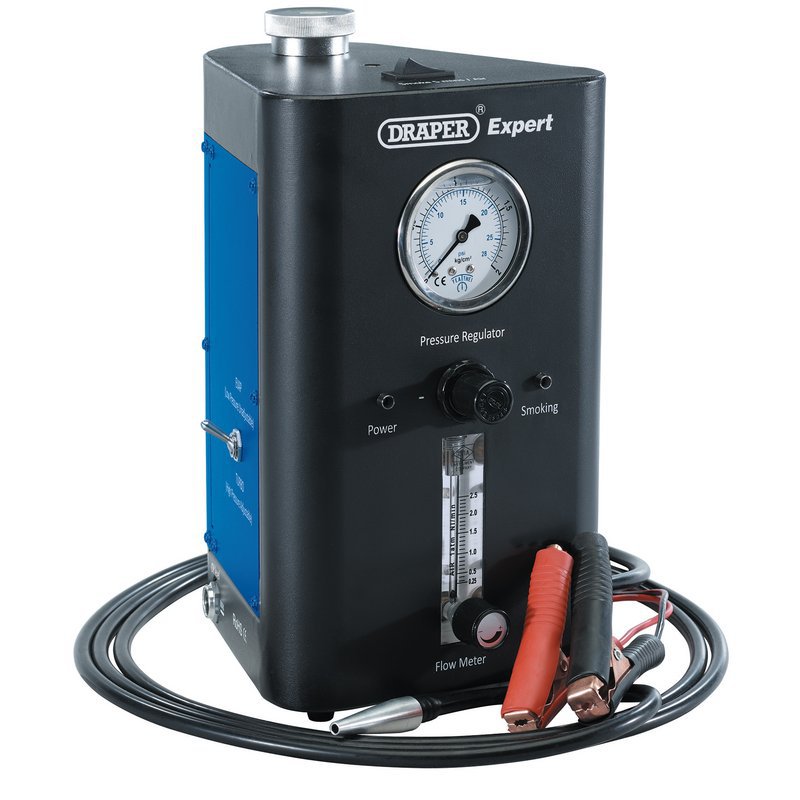

Draper Expert Smoke Diagnostic Machine with Turbo / EVAP / Leak Detection - 94079

Draper Expert Smoke Diagnostic Machine with Turbo / EVAP / Leak Detection

ref: 94079 / SDM-TURBO/EVAP

• This smoke diagnostic machine for turbo and EVAP systems is a huge time saver, efficiently pinpointing leaks throughout all car systems and delivering fast test results.
• It is easy to use, able to switch effortlessly between turbo and EVAP testing.
• It uses mineral oil and workshop air to generate smoke to detect leaks while connected to the vehicle.
• The machine features variable air/smoke pressure control, an easy to read test pressure gauge and oil level indicator.
• For maximum efficiency it has a five-minute duty cycle which ensures the device runs for longer.
• The unit can run up to 20psi (turbo mode) and 0.75psi (EVAP mode) and there is a safety cut-off, so it can operate without risk of blowing the seals.
• The machine is compact, lightweight and connects to a 12V vehicle battery.
• Supplied inside a convenient case packed with accessories including 23 plastic plugs, a 31-81mm cone adaptor, battery cable with crocodile clips, a smoke outlet hose, an air intake adaptor, hook and EVAP service kit.

• 1 x Draper Expert Turbo/EVAP Smoke Diagnostic Machine Pipe Vacuum Leak Detector
• 1 x Air intake adaptor
• 1 x Hook
• 1 x Smoke outlet hose
• 1 x EVAP service tool kit
• 1 x Cap plug kit
• 1 x Battery cable
• 1 x Standard cone adaptor

• Voltage: 12V DC
• Pressure: 3-20psi
• Pressure (EVAP mode): 0.75psi
• Operating temperature: 0℉ to 140℉
• Generator protection temperature: 239℉
• Vapour output hose: 3m
• Operating mode: Smoke 5 min cycle/Air cycle
• Weight: 4.5kg
