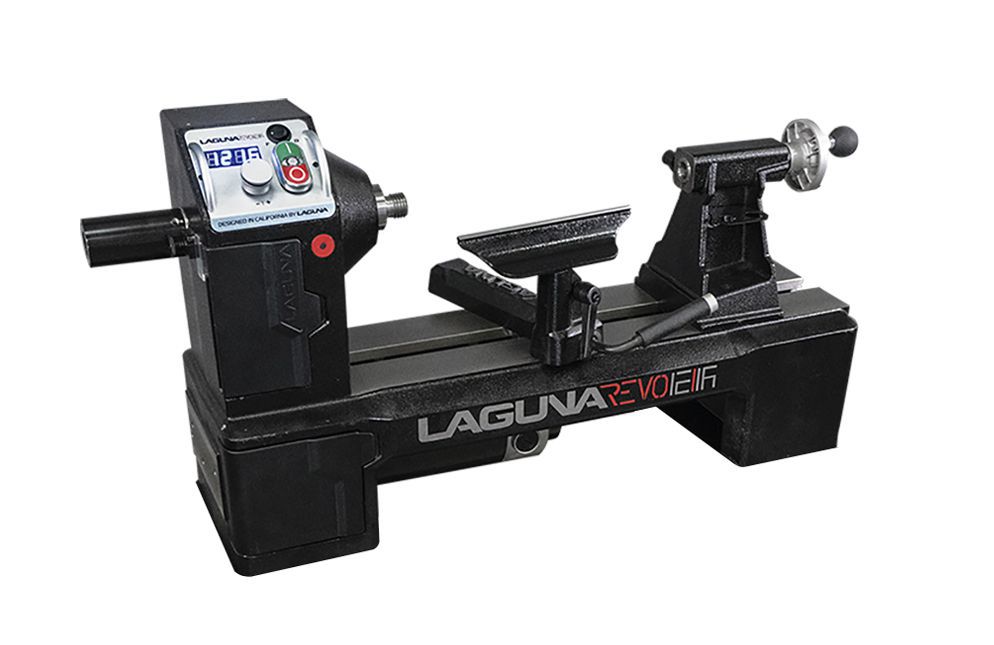

Laguna 12/16 REVO Woodturning Lathe Laguna 1216

Laguna 12/16 REVO Woodturning Midi-Lathe - The Definitive Midi-Lathe - Laguna Revo 1216

• Cast iron bed, headstock, tailstock and banjo
• Luxury soft grip cam action levers
• One step cam handle for fast belt changes
• 24 Position Spindle Indexing
• Spring Loaded Spindle Lock
• Self Ejecting Tail Stock

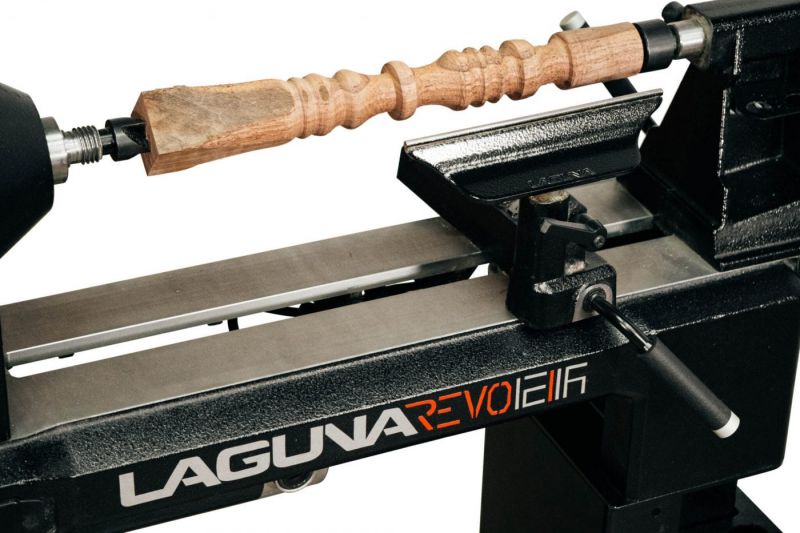

• Tool rest with hardened steel edge
• Outboard turning option
• Forward and reverse rotation
• Onboard tool & accessory storage

• Innovation has been key to the progress of the Laguna brand and it is fully embraced here in the REVO 12/16 Midi Lathe. To overcome the issues of a traditional DC motor (Low torque at low speed and inability to achieve very low speeds) the controller uses the revolutionary Pulse Width Modulation system which feeds a succession of voltage pulses to the motor, monitoring the speed and automatically making adjustments to keep the speed constant. The result is a fantastic level of torque even at the incredibly low speed of 50rpm.
• The controls are mounted in an anodized aluminium plate, the ergonomic design is well positioned with a clear digital speed read out and easy access to all controls. The variable speed is smoothly controlled with a tactile rubber augmented knurled aluminium dial - A joy to use.
• Supplied with 2MT four prong drive centre, 2MT revolving tail centre, 75mm (3") diameter faceplate, 1.8m power cable with UK 3 pin plug.

• Part Number: 12/16REVO
• Motor (DC permanent magnet): 750w (1hp)
• Power Supply: 220-240v / 50Hz / 1 phase
• Swing Over Bed: 310mm (12.5”)
• Swing Over Banjo: 240mm (9.5")
• Max. Outboard Swing: 405mm (16”)
• Distance Between Centers: 390mm (15.5”)
• Distance Between Centres with Optional Expansion Set: 640mm (25")
• Variable Speed Control: Pulse Width Modulation (PWM)
• Speed Range Low: 50 – 525 RPM
• Speed Range Mid: 325 – 1750 RPM
• Speed Range High: 650 – 3500 RPM
• Tool Rest Length: 150mm (6″)
• Tool Rest Stem Diameter: 25.4mm (1”)
• Tool Rest Leading Edge: Hardened Steel
• Headstock Spindle Taper: 2MT
• Headstock Spindle Thread: M33 x 3.5mm (Right Hand)
• Headstock Spindle Through Bore: 9.5mm (3/8”)
• Headstock Spindle Indexing: 24 Positions with Lock
• Headstock Front Bearing: 6006LLU
• Headstock Rear Bearing: 6006LLU
• Drive Belt: Poly-V Belt 6 Grooves
• Tailstock Taper: 2MT
• Tailstock Quill Travel: 63mm (2.5”)
• Tailstock Through Bore: 9.5mm (3/8”)
• Faceplate Diameter: 75mm (3”)
• Bench to Spindle Centre: 330mm (13")
• Floor to Spindle Centre (on Optional Stand): 975mm to 1125mm (39" to 45")
• Assembled Dimensions (WxDxH): 750mm x 226mm x 442mm
• Shipping Dimensions (WxDxH): 895mm x 365mm x 510mm
• Weight (net / ship): 53Kg / 57kg
• Manufacturers Warranty: 1 Year
