Laguna 14/12 Woodworking Bandsaw - 14" Bandsaw 1.75Hp 230v

Laguna 14/12 Bandsaw 14" (350mm) - Laguna Woodworking Bandsaw 1.75hp 230V - (Ref: 14/12)

We are pleased to be introducing this multi award winning large 12" depth of cut bandsaw into Europe. Laguna's experienced designers have produced a bandsaw that we are sure will be a 'go to' machine in most joinery shops and high end DIY home workshops.

• These 'high end' features include a pyramid shaped spine that minimises any frame distortion when the blade is fully tensioned, ensuring cutting accuracy.
• The 1 ¾ HP TEFC braked motor provides adequate power for even the deepest cuts. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.
• The micro polished 21" X 16″ cast iron table is mounted onto an oversized Trunion with two locking points that ensure there is a solid surface to work from. The rigid aluminium high/low fence ensures full and precise timber support.

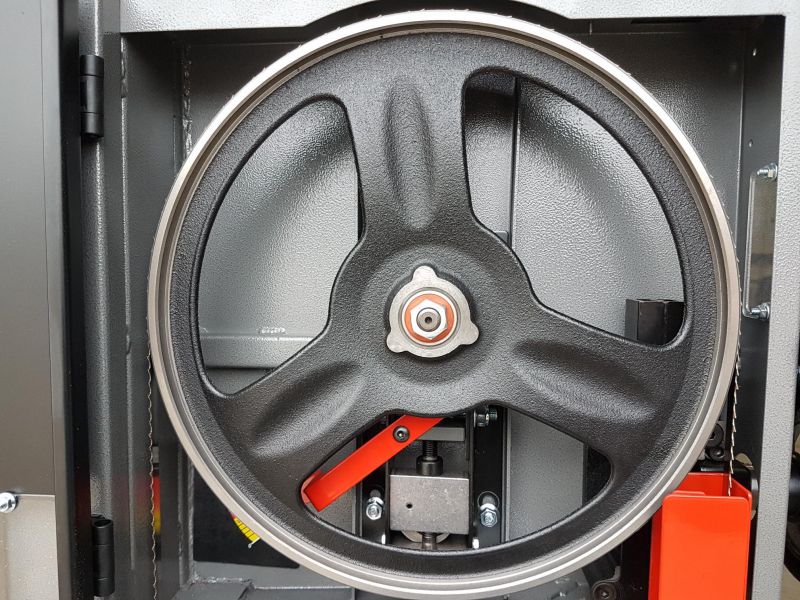

• Solid cast iron wheels are electronically / dynamically balanced & fitted with polyurethane one-piece tyres designed to run cooler & last longer than conventional tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended - this is a trade mark of Laguna.
• Double windows allow you to check both tension & tracking while the machine is running. There is a premium anodized aluminium throatplate with fine adjustment for ultimate accuracy.

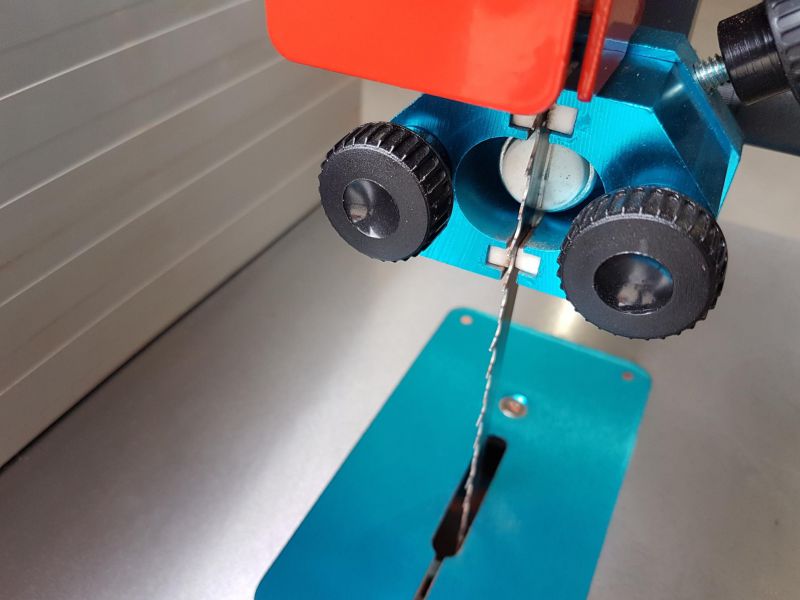

• And last but certainly not least, the famous ceramic Laguna guides create 10 points of contact on the blade allowing easy set up and highly accurate cuts even when re-sawing deep timber.
• This really is a machine that needs to be viewed in the flesh to appreciate the premium build quality and features that have established this saw as a best seller in America and Canada.

• Motor voltage/HP 230V, 50Hz, 1 3/4HP (P2 = 1.3Kw S1)
• Max. Depth of cut 305mm (12")
• Throat 346mm (13 5/8")
• Table cast iron 406.4mm x 546mm (16" x 21 1/2")
• Table tilt -7 degrees +45 degrees
• Mitre slot 3/8" x 3/4" (9.525mm x 19.05mm)
• Table height 965mm (38")
• Fly wheel 14" Cast iron
• Recommended breaker size 15 Amp
• Blade length 2,921mm (115")
• Minimum blade width 3mm (1/8")
• Maximum blade width 19mm (3/4")
• Guides Laguna ceramic above and below table
• Machine Dimensions (W x D X H) 800mm x 683mm x 1784mm (31 1/2" x 26 7/8" x 70 1/4")
• Stand Footprint (W x D) 642mm x 460mm (25 1/4" x 18 1/8")
• Machine Dimensions with mobility kit (W x D) 882mm x 692mm (34 3/4" x 27 1/4")
• Stand Footprint with mobility kit (W x D) 843mm x 521mm (33 3/16" x 20 1/2")
• Weight gross 125 kg (275 lbs)
• Weight net 117 kg (258 lbs)
• Package size 581mm x 581mm x 1397mm (22 7/8" x 22 7/8" x 55")
• Mobility kit Optional
• Industrial work-light Optional

PLEASE NOTE THIS VIDEO IS FROM AMERICA AND YOU SHOULD THEREFORE ALLOW FOR COSMETIC DIFFERENCES IN THE SOON TO BE UPLOADED UK VERSION OF THIS MACHINE.
