Laguna Fusion 1 Cast Iron Table Saw 1.9Hp 240v - NEW 2024 Model

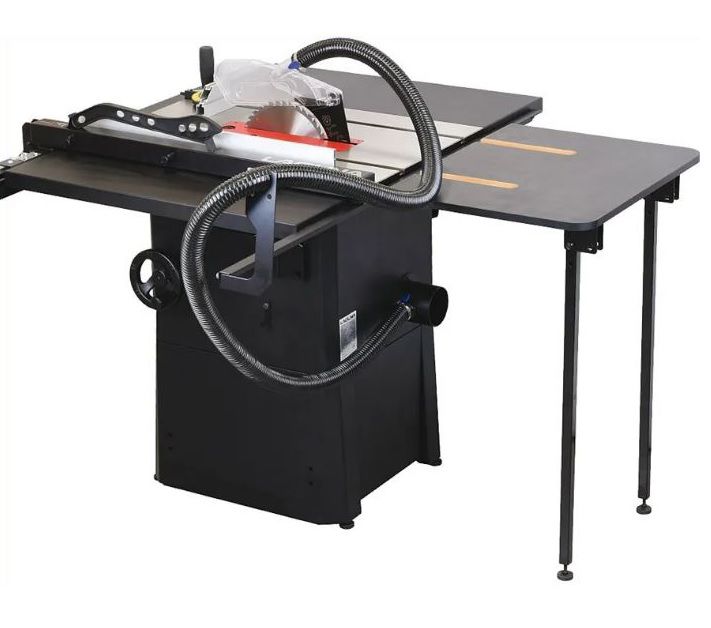

Laguna Fusion 1 Cast Iron Table Saw

The new Fusion 1 hybrid cabinet saw shares many of the quality design features that have made the Laguna Fusion range so succesfull and well regarded in the marketplace. The Fusion 1 is an excellent solution for those looking for a smaller, compact, and yet at the same time accurate and high quality table saw for their workshop.

See the Fine Woodworking Review here

• Polished cast iron table and 3" cutting depth.
• Quiet but powerful 1450w Induction motor.
• Powder coated sturdy 2 part steel cabinet.
• Cast alloy trunnions.
• Solid locking USA style rip-fence.
• Heavy duty steel side tables.
• Smooth and easy to use rise/fall and tilt handles.
• Rear take off table and mitre fence included.
• Mitre slots either side of the blade.

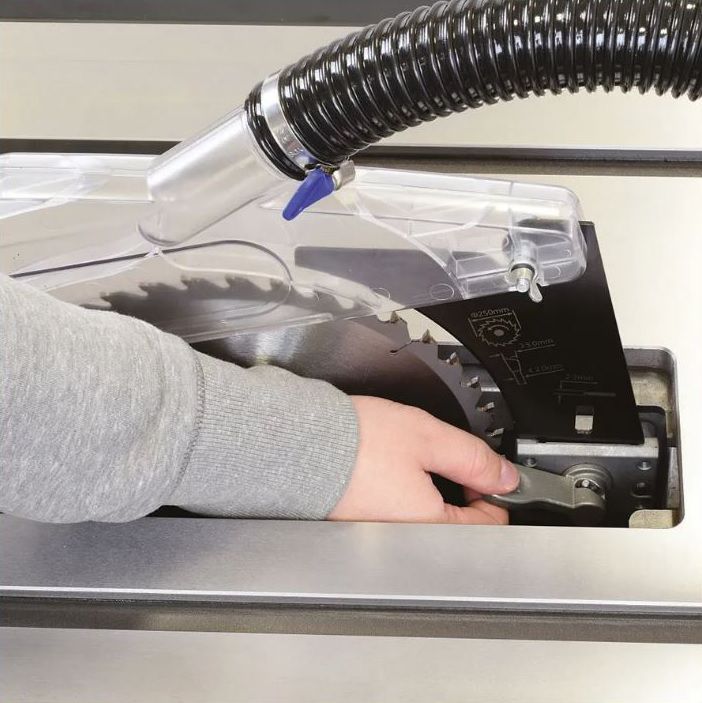

• Quick release riving knife and spindle lock.
• Runs on a UK 13amp domestic plug

• The  large precision ground mirror finished 38mm thick cast iron tabletop allows excellent work piece support. The rear outfeed table adds further stability when ripping long lengths. Two side table extensions are thick walled sheet steel with a high quality abrasion - resistant finish.

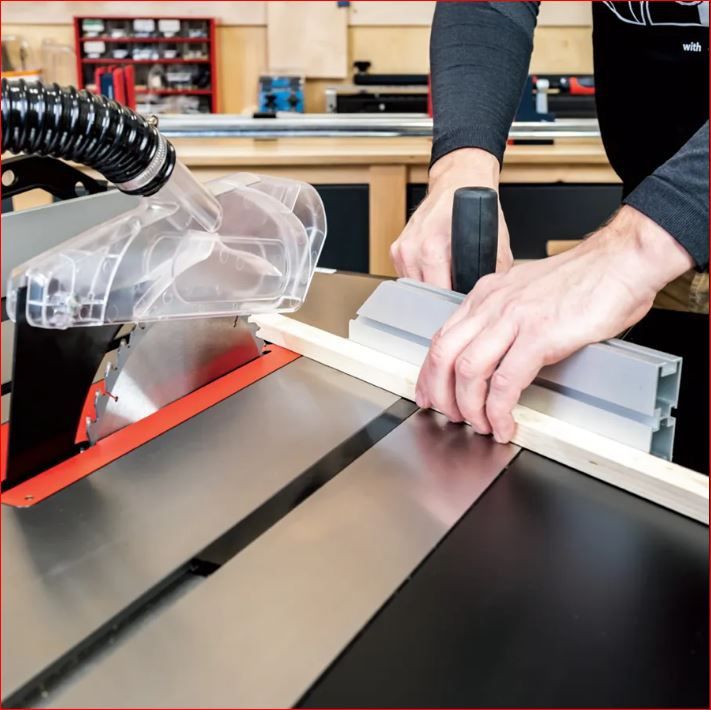

• The classic 'T Style' rip fence, is exceptionally smooth moving and rock solid when locked, a pleasure to use with an easy cam lock handle and will guarantee accurate cuts. The Hi-Lo fence design allows narrow cuts even in thin material. The easy to read measuring scale is marked in both metric and inches.
• The substantial professional 'zero clearance' throat plate is suitable for all blade angles and is supplied as standard, it has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.
• The metal hand wheels with anti-swivel locks ensure easy, smooth and precise saw blade tilting and rise and fall. As this is an American designed saw, the blade tilts to the left away from the fence for safer bevel cutting operation.
• At the heart of the saw is the solid 1450w braked  induction motor. Despite the lower power on paper, this saw is still capable of cuts in hardwood up to 79mm thick.
• Dust extraction is a crucial part of any machine for operator safety and machine longevity. A crown guard hose in conjunction with the interior blade shroud are collected from a single 100mm port. The upper body of the saw is also sealed from the base to aid extraction and keep the saw clean in daily use.
• The standard equipment also includes: On-board storage points for all the accessories, a mitre fence that is very accurate when travelling in the T slots, 40 tooth 250mm TCT sawblade, professional zero clearance throat plate, quick release riving knife for fast blade changes, rear take off table, 1.8m power cable with a UK 13amp plug.

• Part Number: FUSION1
• Motor (Induction): 1450w (1.9hp)
• Power Supply: 220-240v / 50Hz / 1 phase
• Blade Diameter / Bore: 250mm (10") / 30mm
• Minimum Blade Width (Kerf): 3.0mm
• Maximum Depth of Cut @ 90°: 79mm (3.1")
• Maximum Depth of Cut @ 45°: 56mm (2.2")
• Blade Tilt: 45° Left
• Fence Type: Sliding Cam Action, Fully Adjustable
• Rip capacity as standard (right of blade): 787mm (31")
• Fence face height (Hi/Lo): 80mm / 10mm (2.4" / 0.4")
• Mitre slot (x2): 19mm to 23mm T slot (3/4" to 1")
• Throat plate type: Professional zero clearance
• Power cable: 1.8m with 3 pin 13 amp UK plug
• Recommended breaker size (MCB): 13 Amp
• Arbor speed: 3800rpm
• Arbor (diameter x length): 15.87mm (5/8") x 30mm (1.2")
• Dust collection: Outlet diameter: 100mm (4")
• Dust collection: Minimum airflow: 943m3/h (555cfm)
• Floor to Table Height: 887mm (35")
• Assembled dimensions (WxDxH): 1550mm x 1405mm x 1100mm
• Shipping dimensions (WxDxH): 1330mm x 700mm x 790mm
• Weight (net / ship): 110kg / 120kg
• Manufacturers warranty: 1 Year
• Assembly time: 2 Hours
