Pramac P3500i Petrol Inverter Generator 230V 3.3kva - P3500i-230

Pramac P3500i Petrol Inverter Generator 230V 3.3kva

ref: P3500i-230 / PF302SXB002

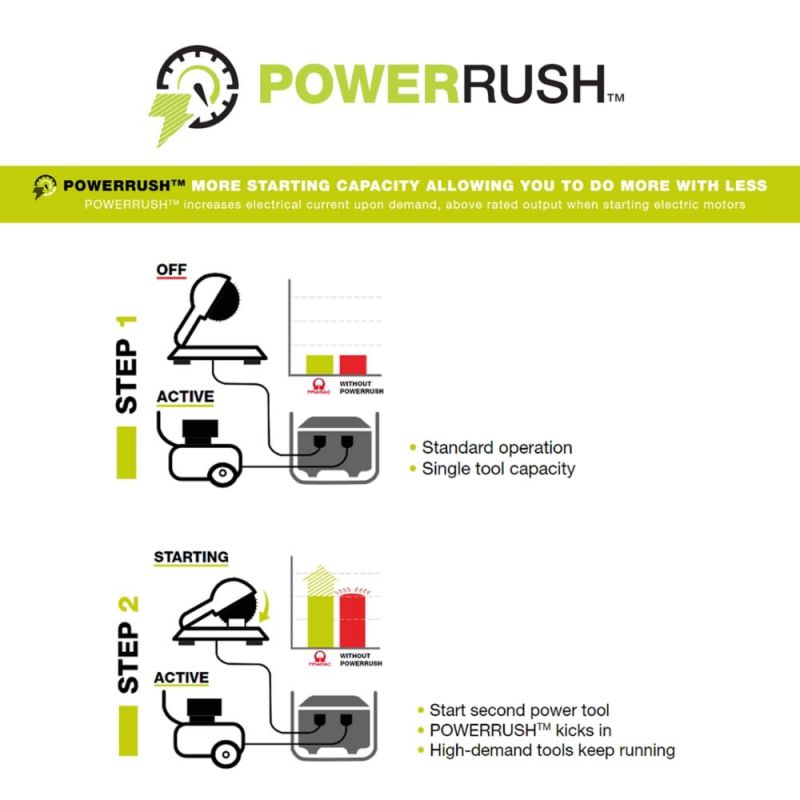

• Pramac P3500i Inverter: this portable generator helps you do more with less! Its durable enclosure and easy portability make it ideal for a wide range of applications. With PowerRush™ you can power more applications with less: it increases electrical current upon demand, above rated output when starting electric motors.

This generator includes an electric and recoil starting system and is ideal for sensitive electronics. Includes:

• Equipped with an OHV engine which provides consistent power for multiple applications.
• Inverter technology means stable power for safe operation of sensitive electronics.
• Pramac P3000i Economy Mode automatically adjusts the engine speed to the optimum level – this provides excellent fuel economy and noise reduction.
• Oil bottle, funnel and plugs included in the carton box.

Control Panel:

• Selector switch: O/I, Economy Mode, Air choke valve, power button and starting handle
• Digital Display:  Outputting energy (indicator light – Green), Overloading and Oil alarming (indicators light – Red), Voltmeter / Hourmeter
• Protections: Overload; Oil Guard; Overvoltage; Overtemperature, Short circuit, Protection Control panel IP 44

Sockets:

• 2 x UK Domestic socket [BS1363 (13A) IP54]
• n°2 USB DC 5V 2A

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Phase: 1
• Max Power Watts: 3300
• Rated Power Watts: 3000

Engine specifications

• Engine Brand: Pramac
• Type: OHV
• Exhaust emission level: Stage V
• Operating Speed Nominal rpm: Variable
• Fuel: Petrol
• Starting Systems: Electric (+Recoil)
• Oil capacity l: 0.6
• Low Oil Shutdown: yes

Alternator Specifications

• Voltage regulation system: Inverter

Dimensional data

• Length (L) mm: 601
• Width (W) mm: 458
• Height (H) mm: 552
• Dry weight kg: 49.5

Autonomy

• Fuel tank capacity: 10
• Fuel consumption 75% 1/h: 1.6
• Running time 75% h: 6

Noise level

• Guaranteed noise level (LWA) dB(A): 88
• Noise pressure level @ 7 m dB(A): 61

Genset Control:

• COMMANDS: Selector switch: O/I Air choke Valve Power Button   ● Smart throttle: Economy mode automatically adjusts the engine speed to the optimum level to provide excellent fuel economy and noise reduction.
• INSTRUMENTATION: ● Outputting energy (light - Green)   ● Overloading and Oil alarming (light - Red)   ● Voltmeter / Hourmeter / Frequency meter / Fuel gauge   ● Parallel kit receptacles
• PROTECTIONS ●  Overload; Oil Guard; Short Circuit; Overvoltage; Overtemperature   ● Protection Control panel IP 44
• OUTPUT:  ● n°2 USB DC 5V 2A
• SOCKET TYPE 230V BS1363 (13A) IP44
