Pramac P3500i/o Petrol Inverter Generator 230V 3.3kva - P3500i/o-230

Pramac P3500i/o Petrol Inverter Generator 230V 3.3kva

ref: P3500i/o-230 / PF312SXI002

• Pramac P3500i/o Inverter: this generator, with its integrated USB, is ideal for charging mobile devices and powering sensitive electronics. With PowerRush™ you can power more applications with less: it increases electrical current upon demand, above rated output when starting electric motors.

This generator is designed to adjust engine speed to save fuel and reduce noise. Includes:

• Equipped with an OHV engine that provides consistent power for multiple applications.
• Inverter technology means stable power for safe operation of sensitive electronics.
• Pramac P3000i Economy Mode automatically adjusts the engine speed to the optimum level – this provides excellent fuel economy and noise reduction.
• Oil bottle, funnel and plugs included in the carton box.

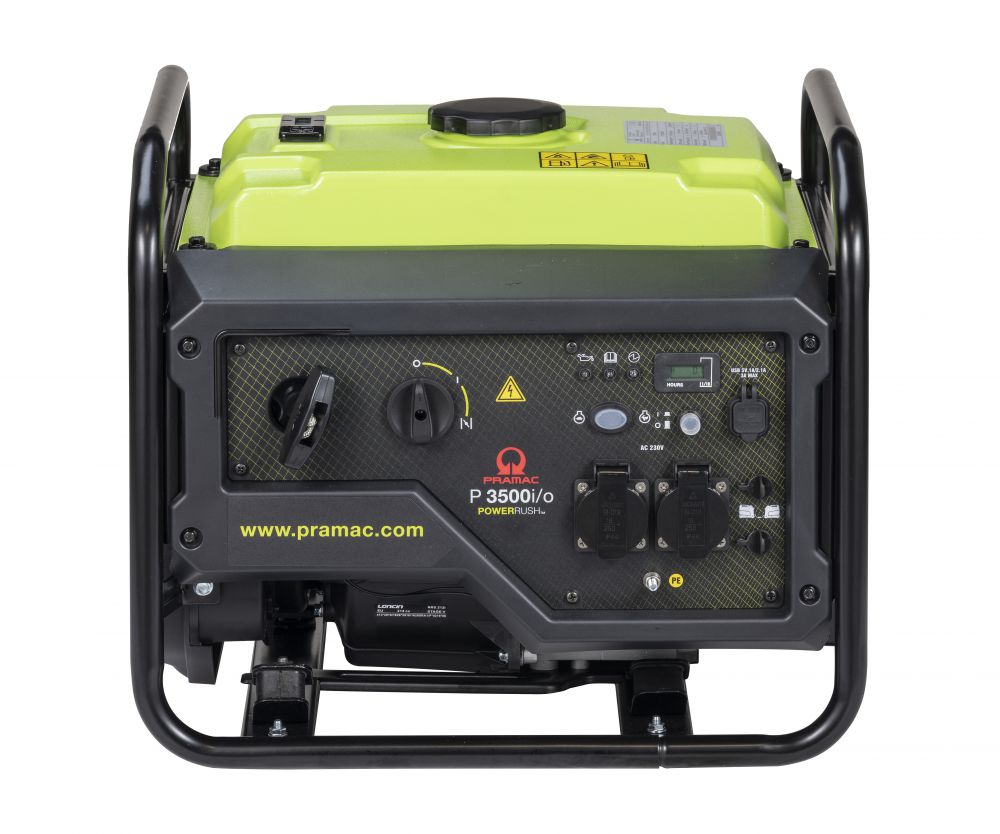

Control Panel:

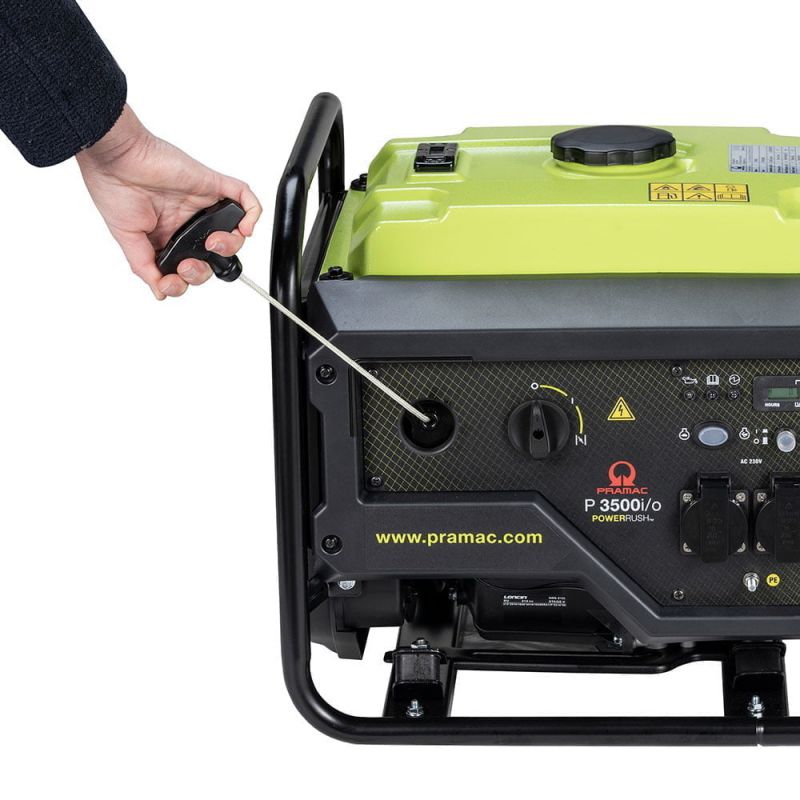

• Selector switch: O/I, Economy Mode, Air choke valve, starting handle
• Digital Display: Outputting energy (indicator light – Green), Overloading and Oil alarming (indicators light – Red), Hourmeter
• Protections: Overload; Oil Guard; Overvoltage; Overtemperature, Short circuit, Protection Control panel IP 44

Sockets:

• 2 x UK Domestic socket [BS1363 (13A) IP54]
• n°2 USB DC 5V 2A

Main Features

• Frequency Hz: 50
• Voltage V: 230
• Phase: 1
• Max Power Watts: 3300
• Rated Power Watts: 3000

Engine specifications

• Engine Brand: Pramac
• Type: OHV
• Exhaust emission level: Stage V
• Operating Speed Nominal rpm: Variable
• Fuel: Petrol
• Starting Systems: Recoil
• Oil capacity l: 0.6
• Low Oil Shutdown: yes

Alternator Specifications

• Voltage regulation system: Inverter

Dimensional data

• Length (L) mm: 490
• Width (W) mm: 430
• Height (H) mm: 417
• Dry weight kg: 34

Autonomy

• Fuel tank capacity: 9
• Fuel consumption 75% 1/h: 1.6
• Running time 75% h: 5.5

Noise level

• Guaranteed noise level (LWA) dB(A): 96
• Noise pressure level @ 7 m dB(A): 66

Genset Control:

• COMMANDS ● Selector switch: O/I ● Air choke Valve ● Starting handle ● Smart throttle: Economy mode automatically adjusts the engine speed to the optimum level to provide excellent fuel economy and noise reduction.
• INSTRUMENTATION: ● Outputting energy (indicator light - Green) ● Overloading and Oil alarming (indicators light - Red)  ● Hourmeter / Fuel gauge ● Parallel kit receptacles
• PROTECTIONS  ● Overload; Oil Guard; Short Circuit; Overvoltage; Overtemperature   ● Protection Control panel IP 44
• OUTPUT: ● n°2 USB DC 5V 2A
• SOCKET TYPE 230V BS1363 (13A) IP44
