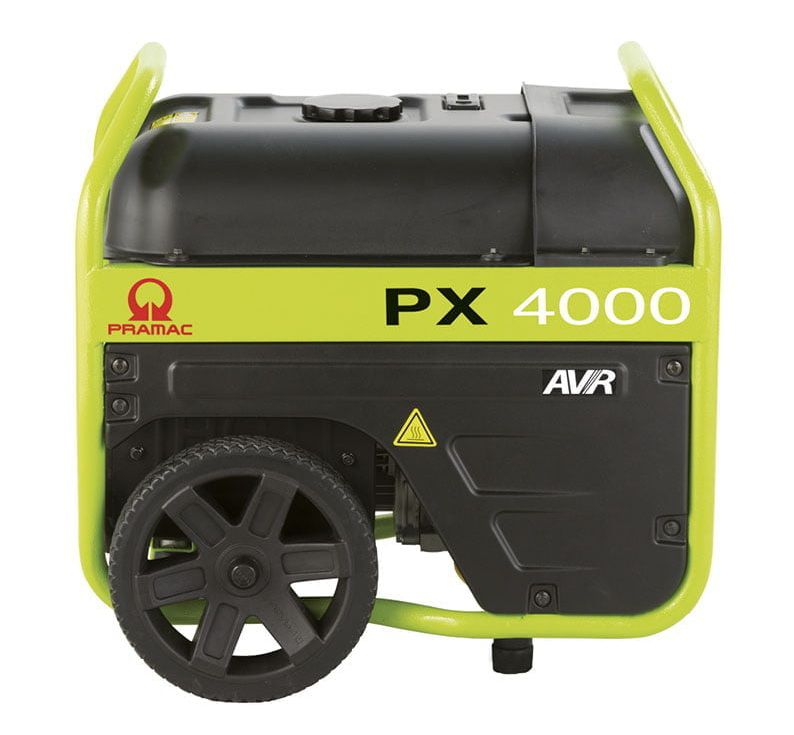

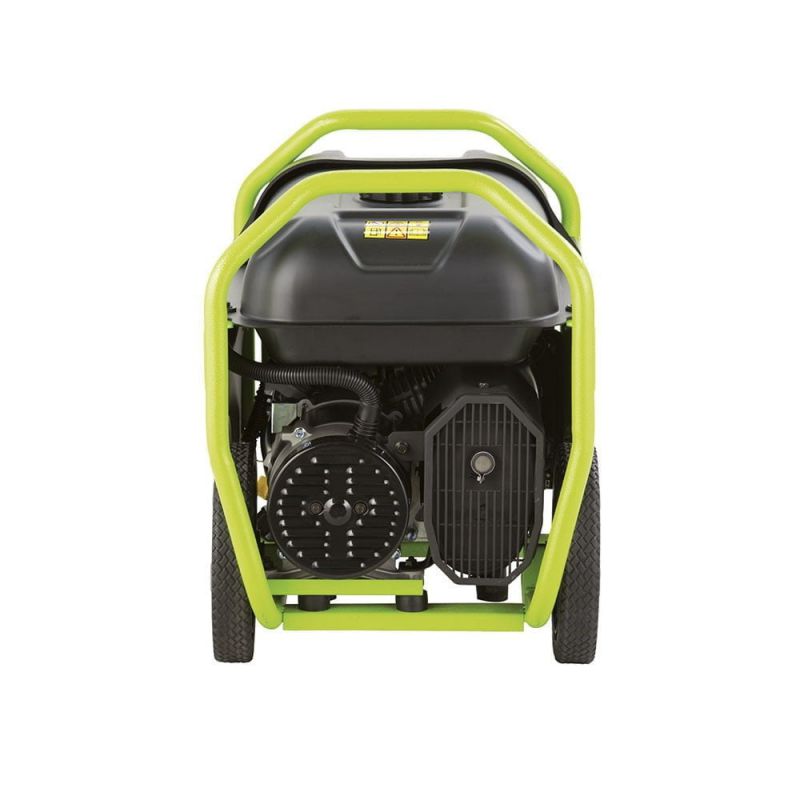

Pramac PX4000UK Portable Petrol Generator 230V/115V 3kva - PX4000-230/115

Pramac PX4000UK Portable Petrol Generator 230V/115V 3kva

ref: PX4000-230/115 / PK222SX1001

• Pramac PX4000: Providing the best long lasting performance for your business, this generator produces low noise emissions which guarantee the best working conditions.

A portable petrol generator created for your professional needs. Includes:

• Equipped with an OHV engine which provides consistent power for multiple applications.
• Handles and wheels kit integrated for easy transportation.
• Practical and quick user starting instructions.

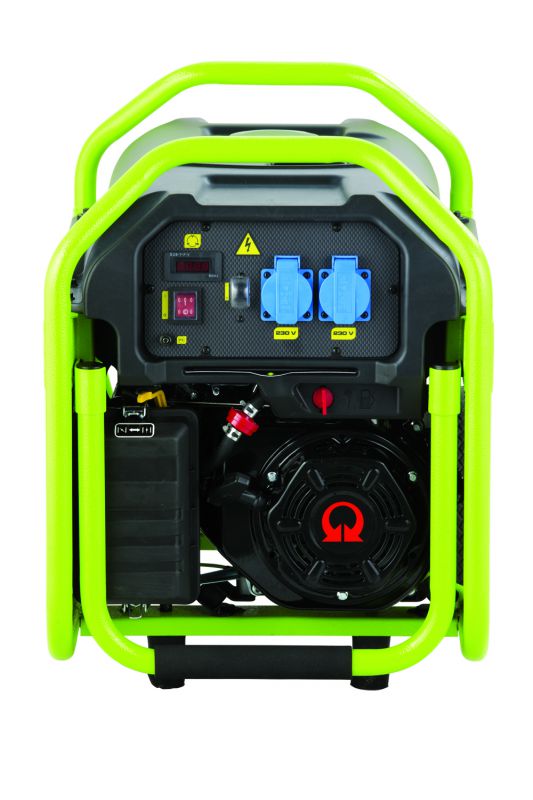

Control Panel:

• Selector switch OFF – ON
• Digital Display: Voltmeter, Frequency meter, Hourmeter
• Protections: Thermal protection

Sockets:

• 1 X 2P+T CEE 115V 32A IP44
• 1 X 2P+T CEE 230V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 230/115
• Power factor cos ϕ: 0.9
• Phase: 1

Power Rating *

• Emergency Standby Power ESP kVA: 3.0
• Emergency Standby Power ESP kW: 2.7
• Continuous power COP kVA : 2.5
• Continuous power COP kW: 2.3

Engine specifications

• Model: SR170F
• Engine cooling system: Air
• Displacement cm³: 208
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 0.6
• Starting system: Recoil

Alternator Specifications

• Class: H
• IP protection: 23M
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: yes

Dimensional data

• Length (L) mm: 600
• Width (W) mm: 439
• Height (H) mm: 588
• Dry weight kg: 64.5
• Fuel tank capacity l: 18.5

Autonomy

• Fuel consumption at 75% of Load l/h: 0.96
• Fuel consumption at 100% of Load l/h: 1.29
• Running time at 75% of load h: 19.27
• Running time at 100% of load h: 14.34

Noise level

• Guaranteed noise level (LWA) dB(A): 93
• Noise pressure level @ 7 m dB(A): 65

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
