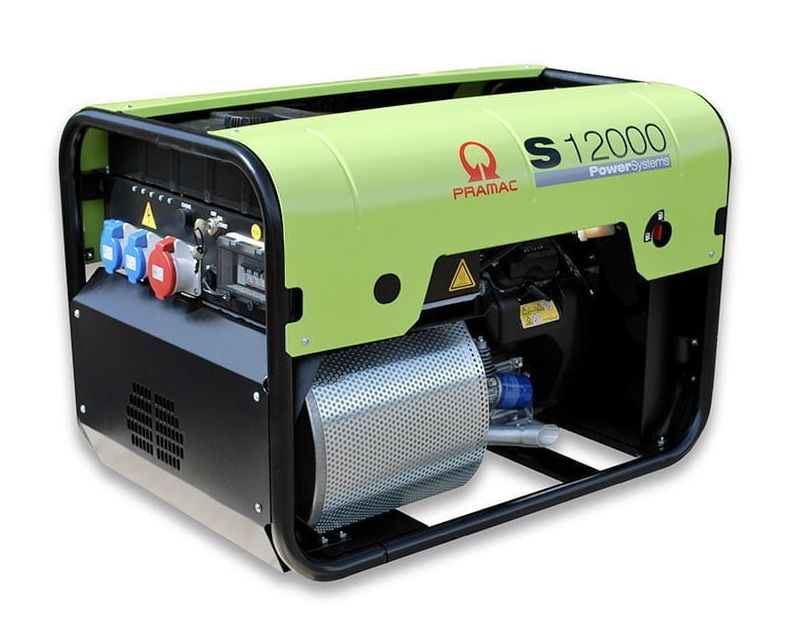

Pramac S12000 Portable Petrol Generator 400V/230V 11.8kva - S12000-400/230

Pramac S12000 Portable Petrol Generator 400V/230V 11.8kva

ref: S12000-400/230 / PD123TH200H

• Pramac S12000: Robust and easy to carry, this powerful generator is your best partner for work.

A portable generator with exceptional quality and strength. This top class product has a powerful engine, a strong and modern design and a long-run easy filling fuel tank.

• Perfect for intensive use, this generator is equipped with a control panel which allows the integration of many accessories and options for better comfort and for optimal command.

Control Panel:

• Selector switch with key: OFF – ON-START
• Pushbutton Choke
• CONNector for AMF/RSS (AMF/RSS Accessory available not included)

Instrumentation:

• Voltmeter
• Hours-meter

Sockets:

• 1 x SCHUKO 230V 16A IP54
• 2 x CEE 230V 16A IP44
• 1 x CEE 400V 16A IP44

Main Features

• Frequency Hz: 50
• Voltage V: 400/230
• Power factor cos ϕ: 0.9
• Phase: 3

Power Rating *

• Emergency Standby Power ESP kVA: 13.9
• Emergency Standby Power ESP kW: 11.1
• Continuous power COP kVA :11.8
• Continuous power COP kW: 9.5

Single Phase Power Rating:

• Single phase Maximum Power kVA : 5.6
• Single phase continuous power COP kVA:  5.0

Engine specifications

• Engine Brand: Honda
• Model: GX630
• Engine cooling system: Air
• Displacement cm³: 688
• Aspiration: Natural
• Operating Speed-Nominal rpm: 3000
• Speed governor: Mechanical
• Fuel: Petrol
• Oil capacity l: 1.0
• Starting system: Electric

Alternator Specifications

• Brushes
• Class: H
• IP protection: 23
• Poles: 2
• Frequency Hz: 50
• Voltage regulation system: Electronic
• Standard AVR: ASR

Dimensional data

• Length (L) mm: 960
• Width (W) mm: 641
• Height (H) mm: 667
• Dry weight kg: 165
• Fuel tank capacity l: 24

Autonomy

• Fuel consumption at 75% of Load l/h: 4.23
• Fuel consumption at 100% of Load l/h: 5.64
• Running time at 75% of load h: 5.67
• Running time at 100% of load h: 4.26

Noise level

• Guaranteed noise level (LWA) dB(A): 96
• Noise pressure level @ 7 m dB(A): 68

* Ratings definition (ISO-8528)

• ESP - Emergency Standby Power: It is the maximum power available during a variable electrical power sequence, under the stated operating conditions, for which a generating set is capable of delivering in the event of a utility power outage or under test conditions for up to 200 h of operation per year with the maintenance intervals and procedures being carried out as prescribed by the manufacturers. The permissible average power output over 24 h of operation shall not exceed 70 % of the ESP.
• COP - Continuos Power: It is defined as being the maximum power which a generating set is capable of delivering continuously for an unlimited number of hours, with the maintenance intervals and procedure being carried out as prescribed by the manufacturers.
