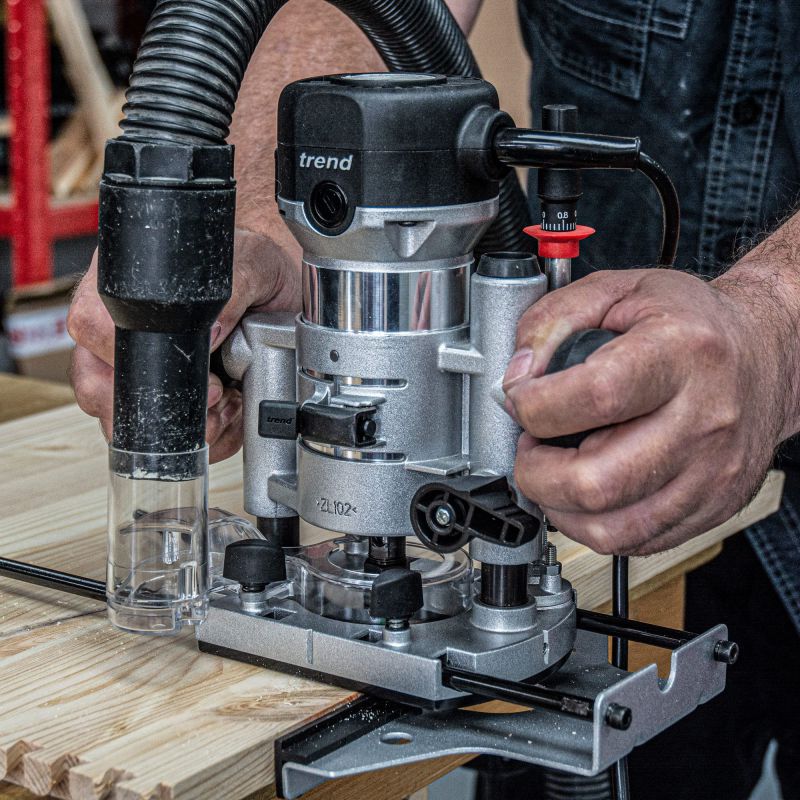

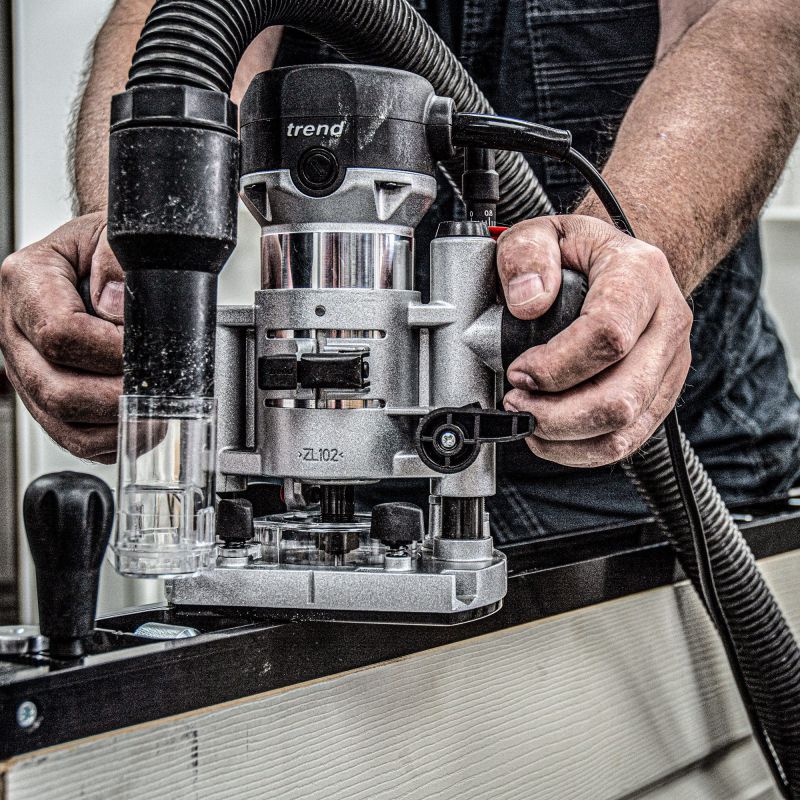

Trend T1EPS 710W 1/4" Dual-Base Trim and Plunge Router 240V

Trend T1EPS 710W 1/4" Dual-Base Trim and Plunge Router 240V

Flexible, light and compact router with trim and plunge bases. Perfect for laminate trimming, grooving, hinge cutting and timber profiling.

• 710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
• Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
• Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
• Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
• Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.

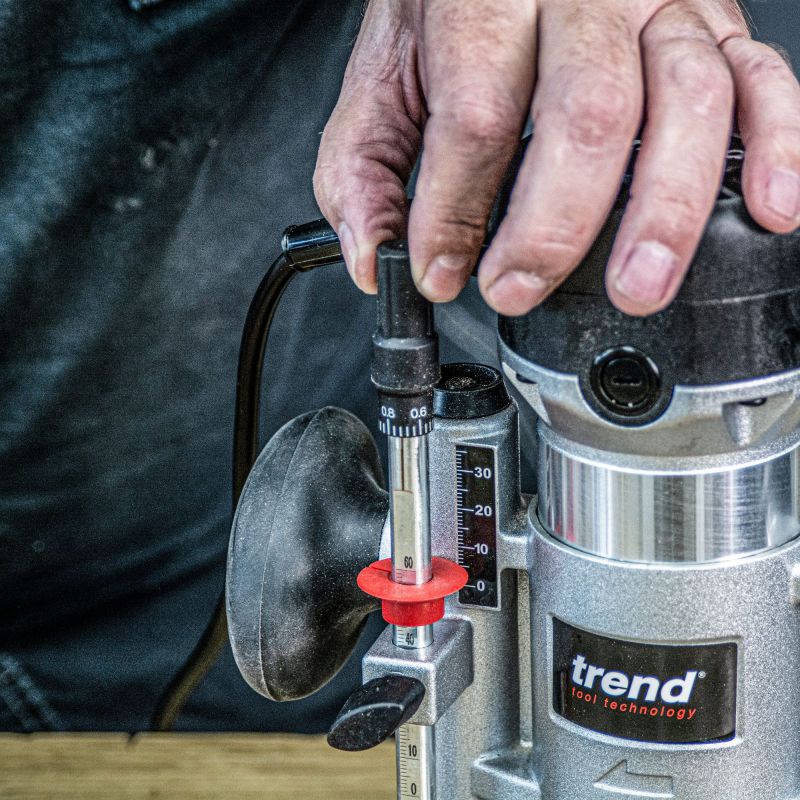

• Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
• Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
• Compact Inclined Handles** feature a soft grip moulding for comfortable operation
• Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
• Compatible with Trend Guide Bushes for jig use, templating and inlaying.
• Adjustable Side Fences for templating and edge rebating.
• *3 year warranty – Online registration required
• **Plunge base only

• Tough Polyester Kit Bag for storage of the router and all accessories.

• Edge Moulding
• Hinge Fitting and Grooving
• Templating and Profiling

• Duty Rating: Light
• Motor Power: 710W
• AC Voltage: 240V
• Plug Type: UK 3 Pin
• Supplied Collet Size: 1/4"
• Plunge Stroke (Max): 60mm
• Cutter Height Adjustment - Trim Base: 37mm
• No Load Speed: 10,000-30,000rpm
• Supplied Guide Bush: 16mm (GB160)
• Fence Rod Length: 300mm
• Fence Rod Centres: 84mm
• Fence Rod Diameter: 8mm
• Base Aperture Diameter: 40mm
• Cutter Diameter (Max): 35mm
• Dust Spout Internal Diameter: 35mm
• Weight of Base - Trim: 0.32kg
• Weight of Base - Plunge: 1.35kg
• Weight of Motor Body: 1.49kg
• Sound Pressure (Lpa): 85 dB(A)
• Acoustic Pressure (Lwa): 96 dB(A)
• Hand / Arm Vibration -Trim: 4.6m/s2
• Hand / Arm Vibration - Plunge: 4.5m/s2
• Power Cable Length: 3m
• Router Table Compatible: No
