Woodpeckers Handle Jig Plus - HJP

Woodpeckers Handle Jig Plus

ref: HJP

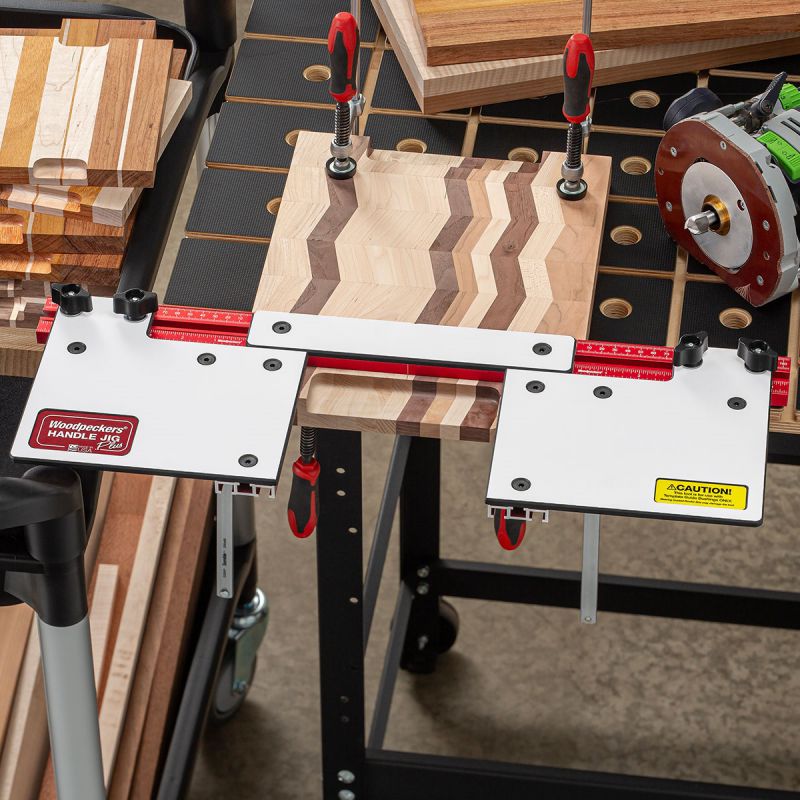

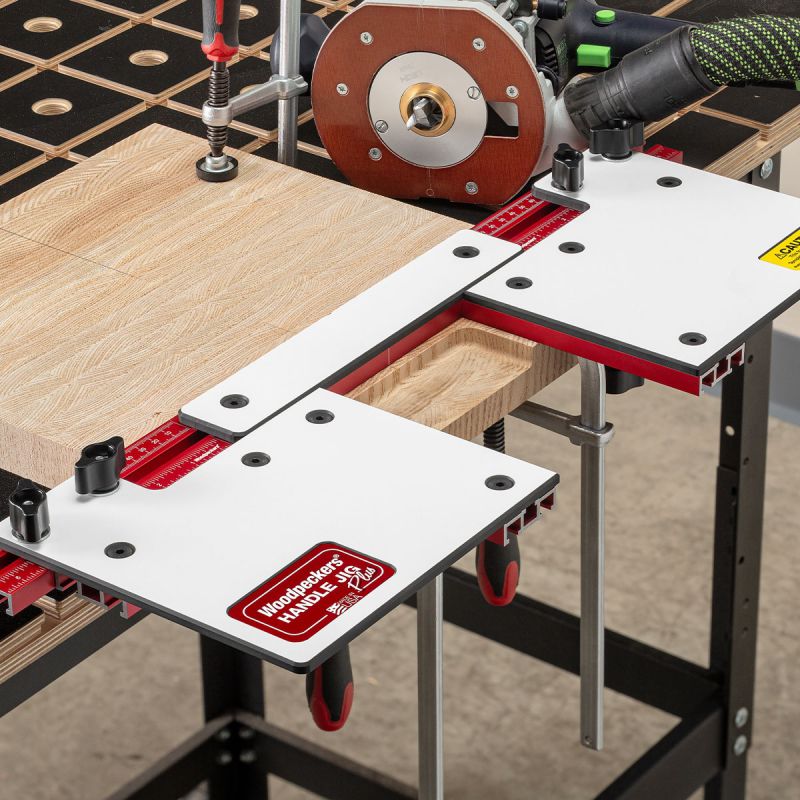

• Woodpeckers Handle Jig Plus enables you to rout custom-sized recessed handles in any cutting board, serving tray, or charcuterie board. The jig is fully adjustable for width and length of your handle recess from a small finger notch to a 7" wide, 5-1/2" long pocket. No longer do you have to build a one-off shop-made jig for every new board you design. You pick the size you want for each board. Whether you make rectangular boards, template-routed serving trays, or you want to start adding waste trays to your designs, this adjustable template will guide your router to make recessed handles proportional to your design. And it's all made from durable materials that will stand up to years of use. So as your cutting board designs evolve, your Handle Jig Plus will be there…in whatever size you need it to be.

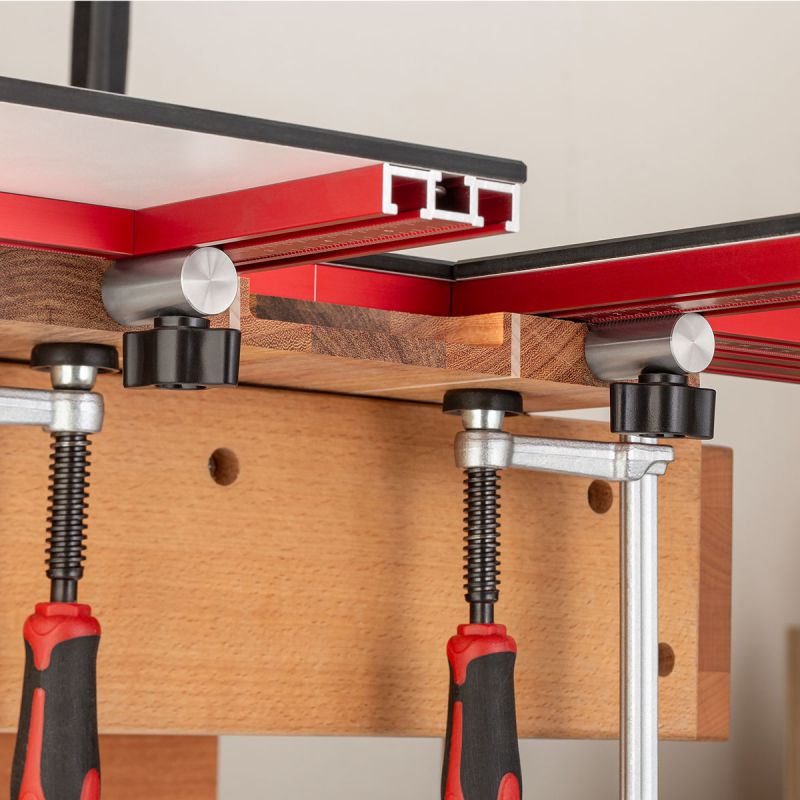

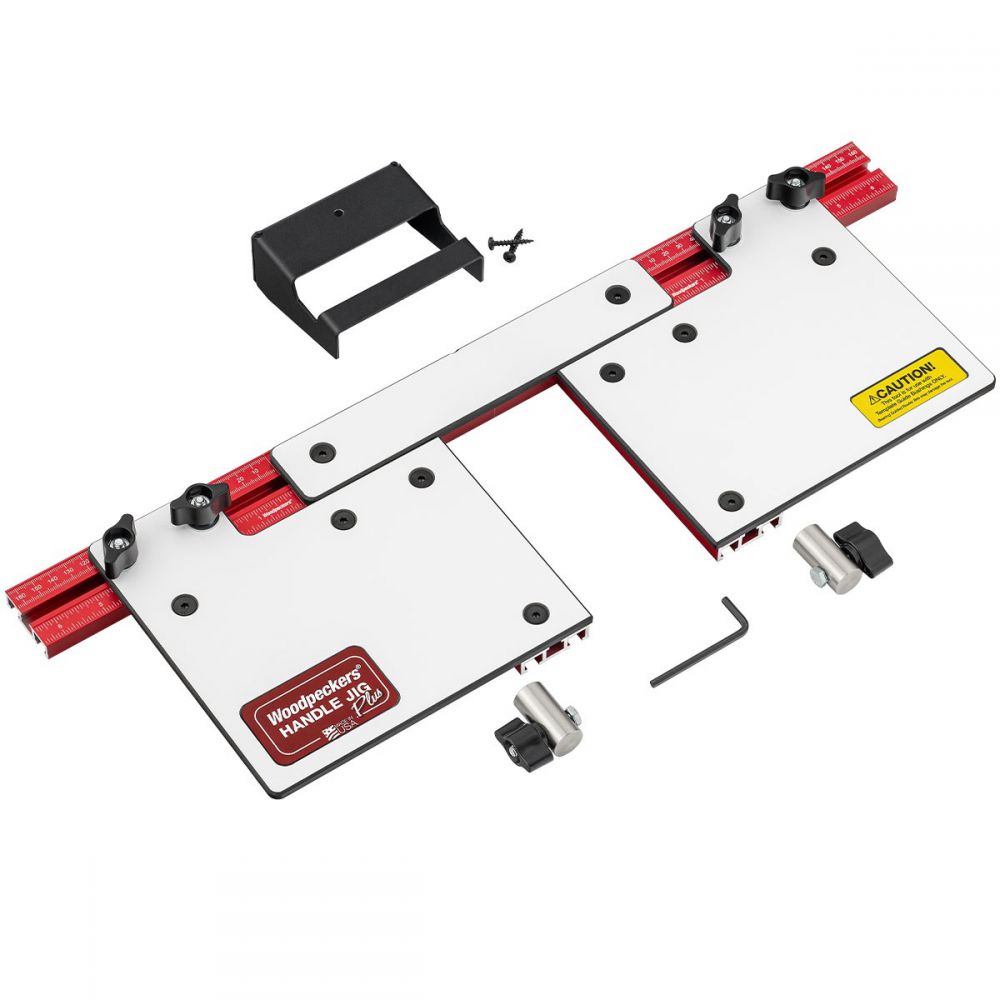

• Its versatility comes from the two adjustable plates which slide along a central beam. We machine the plates from highly durable phenolic that won't warp, bend, or crack due to the elements. Flip it over and you'll find sections of slotted aluminum track that serve three purposes. The tracks hold the adjustable plates perfectly square to the beam. They allow you to use convenient track clamps to clamp your workpiece from the front or the sides, keeping the clamps out of the way. And, the stainless-steel stops slide along the track so you can quickly index the edge of your board.

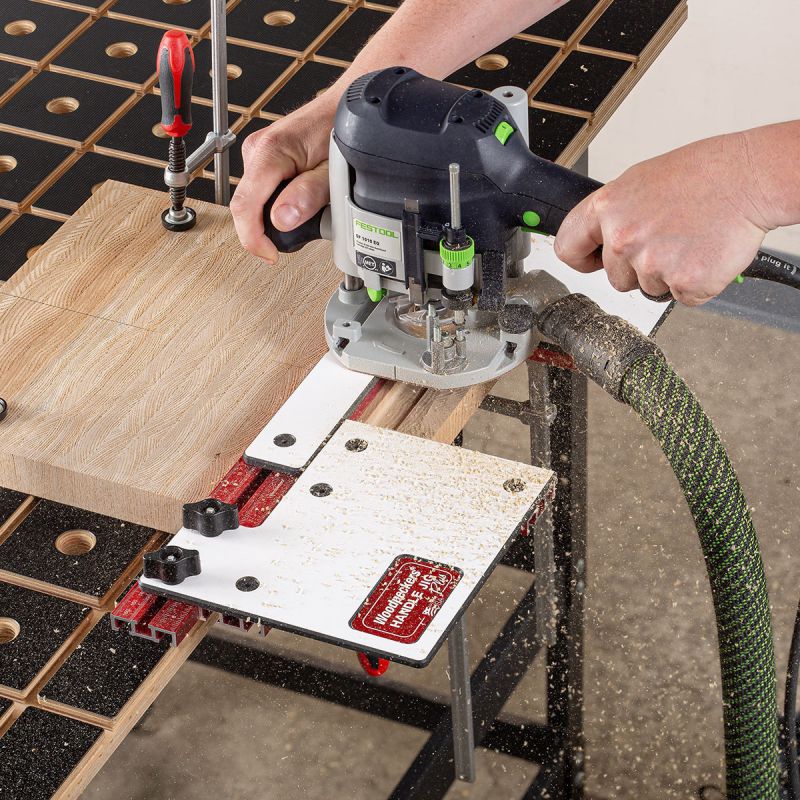

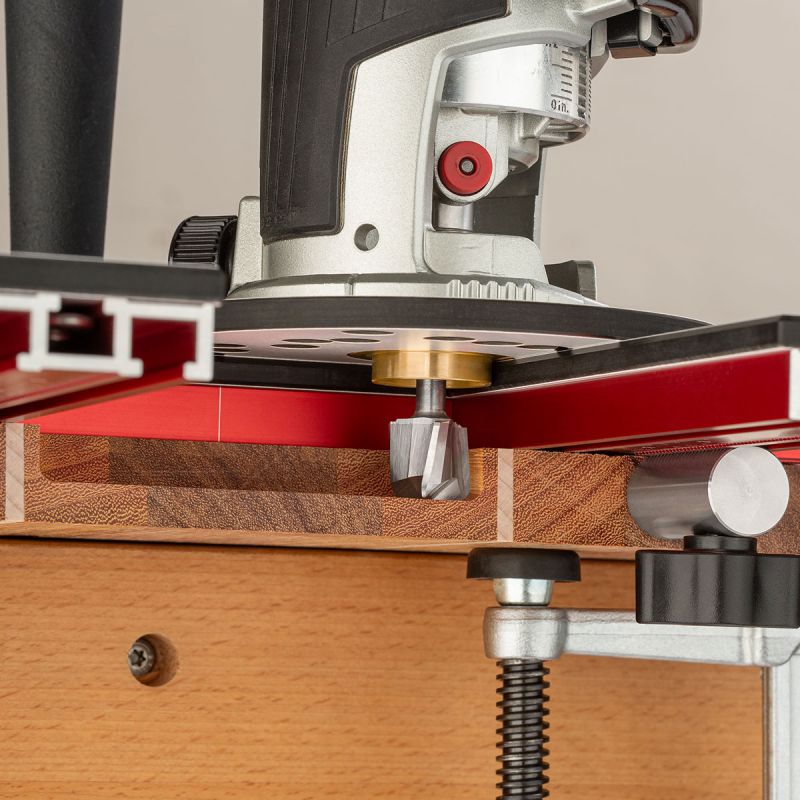

• We engrave both inch and metric scales on the beam to set your handle's width. We also include inch and metric tracks on the underside of the jig to set the length of your handle. Adjusting the router template to your design's dimensions is simple with just a few knobs. You can set the opening to any width up to 7" (180 mm) and any length up to 5" (130 mm). Finally, you can start routing waste trays in your cutting board designs. With the Handle Jig Plus, you can use any router with a template guide bushing attachment. And while you can use any router bit that fits your design with the Handle Jig Plus, our 1" and 3/4" Deep Reach Bowl Bits clear out waste quickly while leaving glassy smooth finishes on the bottom and sides.

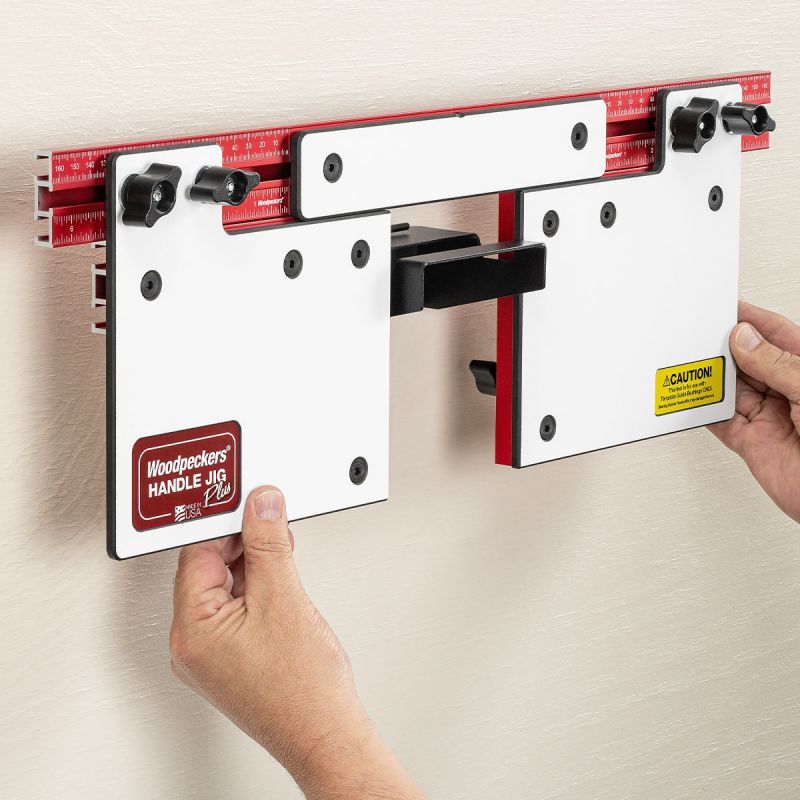

• With each Handle Jig Plus we include a convenient wall-mountable Rack-It, keeping your tool right in plain sight and ready for your next project.
